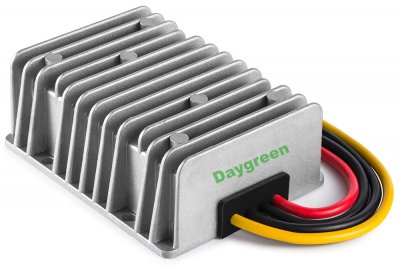

DC/DC Omvandlare 12V till 24V, 600 Watts max. 25A
1 270,63 SEK/styck
- Betala säkert med kort, Klarna Checkout eller egen faktura.
- Maila oss, vi svarar snabbt!
Beskrivning
Art.nr: H25-12-24A
- Wide input voltage from 11 to 16V
- Work for appliances from 0AMP to 25AMP automatically
- 100% full rated power
- 100% full stable output current
- 100% burn-in test
- High-efficiency up to 95%
- Waterproof sealed
- Cooling by free air convection
- Surface mountable
- Surface mountable
- 2-year warranty
- Over-current, over-voltage protections
- Over-temperature protection
According to:
EN 61000-6-3:2007/A1:2011/AC:2012
EN 55014-1:2006/A2:2011 EN 60950-1:2006/AC:2011
Efficiency: 95%
Input Voltage: 11-16V DC
Output Voltage: 24V
Output Current: 25A
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Dimension: 100*80*39mm
Net Weight: 0.5kg
Operating Temperature: -40~85°C
Certificates: CE, ROHS
