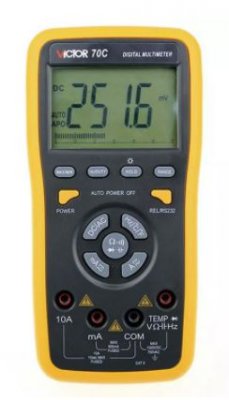

Electronics Analysis Instrument Digital Multimeter VICTOR 70C

SPECIFICATIONS:

DC Voltage: 600mV / 6V / 60V / 600V / 1000V ± (0.5% + 4d)
AC voltage: 600mV / 6V / 60V / 600V / 750V ± (0.8% + 10d)
DC Current: 60mA / 600mA / 10A ± (1.0% + 10d)
AC Current: 60mA / 600mA / 10A ± (1.5% + 10d)
Resistance: 600? / 6k? / 60k? / 600k? / 6M? / 60M? ± (0.8% + 4d)
Capacitance: 4nF / 40nF / 400nF / 4uF / 40uF / 200uF ± (3.5% + 8d)
Frequency: 100Hz / 1000Hz / 10kHz / 100kHz / 1MHz / 20MHz ± (0.5% + 10d)
Temperature: (- 20-1000C) (0F -1832F) ± (1.0% + 5d)
RS232 Interface Communication

Backlit display

61 segment analog bar display

No dial knob, button type

Misuse full protection

Diode / off alarm

Low voltage display

Data Hold

Automatic shutdown

10A fuse

Shock Protection

Unit symbol display

Maximum measurements

Relative value measurement

Duty cycle measurements: 1% -99%

Input impedance: 10MHz

Sampling rate: 3 times / sec.

AC Frequency: (40-400) Hz

Maximum Display: 3 5/6 digit (5999)

LCD Size: 68 × 47mm

Power: 1.5V AA batteries * 2

Color: body - dark gray anti-vibration set - yellow

Weight: about 330g

Size: 185 × 93 × 48mm

Standard accessories: table pen, manual, certificate, leather boxes, TP01 temperature probe * 1 (-40C ~ 250C), PC Interface line, CD-ROM.

Packing: box
