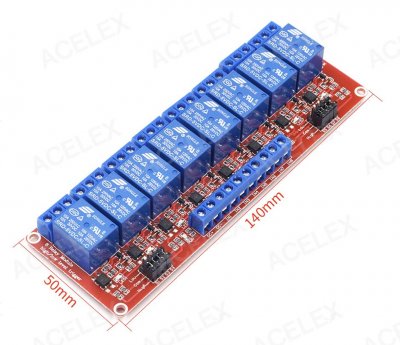

Relämodul 8 kanal, 5V
- Betala säkert med kort, Klarna Checkout eller egen faktura.
- Maila oss, vi svarar snabbt!
Beskrivning
Art.nr: RELÄ8X5V
8 Channel Relay module with Optocoupler
Description:
1. Maximum load: AC 250V/10A, DC 30V/10A
2. SMD optocoupler isolation, strong driving ability,
stable performance: trigger current 5mA.
3. The module voltage 5V
4. Each channel module can be set high or low
triggered by jumper.
5. Fault-tolerant design, even if the control line is
broken, the relay will not operate.
6. Power indicator (green), 8 relay state indicator (red)
7. Interface design user-frendly, all interfaces are
available though the wiring termenal direct connection leads, very convenient.
Modul Port:
1. DC+: DC power supply positive.
2. DC-: DC power supply negative
3. IN1: Channel 1 signal trigger terminal
4. IN2: Channel 2 signal trigger terminal
