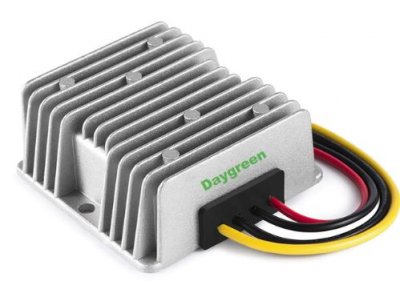

DC/DC-omvandlare 12V24V to 5V 30A
- Betala säkert med kort, Klarna Checkout eller egen faktura.
- Maila oss, vi svarar snabbt!
Beskrivning
Art.nr: 12240530
Wide input voltage from 11 to 35V
Work for appliances from 0AMP to 30AMP automatically
100% full rated power
100% full stable output current
100% burn-in test
High-efficiency up to 95%
Waterproof sealed
Cooling by free air convectionSurface mountable
Over-current, over-voltage protections
Over-temperature protection
According to:
EN 61000-6-3:2007/A1:2011/AC:2012
EN 55014-1:2006/A2:2011 EN 60950-1:2006/AC:2011
Efficiency: 95%
Input Voltage: 11-35V DC
Output Voltage: 5V
Output Current: 30A
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Dimension: 74*74*30mm
Net Weight: 0.28kg
Operating Temperature: -40~85°C
Certificates: CE, ROHS
