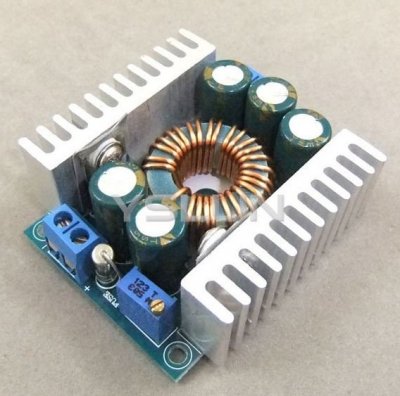

DCDC-omvandlare 4,5..30V till 0,8...30V 12A
- Betala säkert med kort, Klarna Checkout eller egen faktura.
- Maila oss, vi svarar snabbt!
Beskrivning
Art.nr: DC4530
DC/DC-omvandlare 4,5..30V till 1.4...30V 12A, 100 Watt
•Module properties: non-isolated step-down module (BUCK)
•Input Voltage: 4.5-30V
•Output Voltage: 1.4-30V
•Output Current: 0-12A, 100W (if enhance heatsink, can reach 200W)
•Operating temperature: -40°c to +85°c
•Working frequency: 300KHz
•Conversion efficiency: up to 95%
•Short circuit protection: YES ( the Limit current is 14A)
•Over-temperature protection: Yes (Over-temperature Automatically shuts down the output)
•Input reverse polarity protection: None ( please install diode at input port )
•Installation: four 3mm screws
•Wiring: Connection: V-IN input, V-OUT output
•Dimensions: 60x52x20mm
