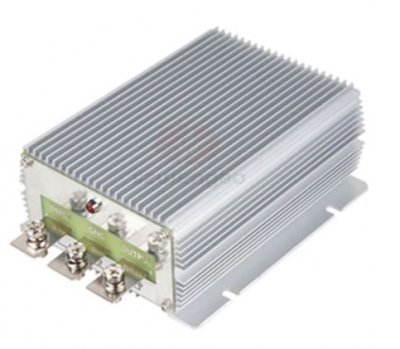

DC/DC Step up omvandlare 12VDC (11...16) till 48V 20A 960W
4 430,50 SEK/styck
- Betala säkert med kort, Klarna Checkout eller egen faktura.
- Maila oss, vi svarar snabbt!
Beskrivning
Art.nr: 12482000
- Wide input voltage from 11 to 16V
- Stable output voltage is 48V
- Work for appliances from 0.5AMP to 20AMP automatically
- 100% full rated power
- 100% full stable output current
- 100% burn-in test
- High-efficiency up to 94%
- Waterproof sealed
- Cooling by free air convection
- Surface mountable
- 2 years warranty
- Over-current, over-voltage protections
- Over-temperature, shutdown, short-circuit, reverse polarity protections
- According to: EN 50498:2010 IP68
Efficiency: 95%
Input Voltage: 11-16V DC
Output Voltage: 48V
Output Current: 20A
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Dimension: 180*127*63mm
Net Weight: 1.8kg
Operating Temperature: -40~85°C
Certificates: CE, ROHS
