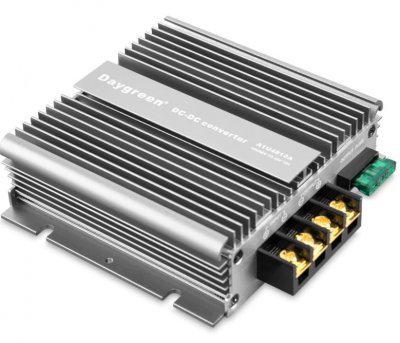

DC/DC Step up omvandlare 12VDC (11...35) till 56V 10A 560W

3 834,86 SEK/styck

Läs mer...

I lager: 8

Leverans: 1-2 dagars leveranstid.

Antal

Betala säkert med kort, Klarna Checkout eller egen faktura.
Maila oss, vi svarar snabbt!

Beskrivning

Art.nr: A1C5610

Wide input voltage from 11 to 16V
Work for appliances from 0AMP to 10AMP automatically
Charge 48V battery to 56V
100% full rated power
100% full stable output current
100% burn-in test
High-efficiency up to 95%
Waterproof sealed
Cooling by free air convection
Surface mountable

Over-current, over-voltage protections
Over-temperature protection

According to:
EN 61000-6-3:2007/A1:2011/AC:2012
EN 55014-1:2006/A2:2011 EN 60950-1:2006/AC:2011

Efficiency: 95%
Input Voltage: 11-16V DC
Output Voltage: 56V
Output Current: 10A
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Dimension: 154*130*50mm
Net Weight: 1.5kg
Operating Temperature: -40~85°C
Certificates: CE, ROHS
