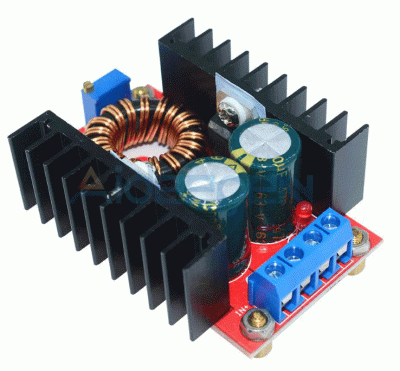

DC-DC Boost Converter Step Up Power Supply Module 10-32V Till 35-60V, 90W

With airfoil radiator, the cooling effect is improved significantly, greater output power(plus fan the max power can up to 90W).

Low output ripple, when output in 48V,the output ripple can control in about 1%.
Input voltage:10-34V, Output voltage default setting is about 48V.

Specifications:

Module Properties: Non-isolated step-up module (BOOST) Input Voltage: DC 10-32 V
Output Voltage: DC 35-60 V (adjustable)
Maximum output Current: 5 A
Power: 80W(MAX,Natural cooling),Strengthen cooling 120W(MAX,Actual power)
Efficiency: typical 90 %(For reference)
Output ripple: 2%(max) 20M bandwidth
Operating Temperature: Industrial (-40 to +85 ),( environmental temperature, more than 40 degrees, please reduce power to use, or enhance cooling)Full Load temperature rise: 45
No-load Current: Typical 25mA
Switching Frequency: 100KHz
Load Regulation: ± 0.5%
Voltage Regulation rate: ± 0.5%
Dynamic response speed: 5% 200uS
Short-circuit Protection : None (Please install fuses or protection circuits at input port if you need.)
Input Reverse Protection: None (Please Series diode at the input port.)

Net weight:67g
Size: 65(L) x 47(W) x 27(H) mm

Application:

Adjustable Output Car Power Boost Charger
Power for your electronic equipment
Solar battery charger for electric vehicles
