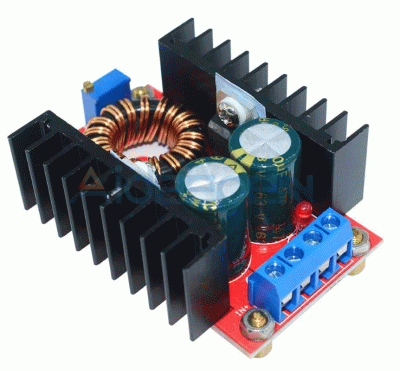

DC-DC Boost Converter Step Up Power Supply Module 10-32V Till 60-97V, 100W

non-isolated step-up module (BOOST)

Input voltage :10-32V
Output voltage: continuously adjustable (60-97V)
Output Current: 2A (MAX)
Input Current: 16A (MAX) (over 10A please enhance heat dissipation)
Output power: natural cooling 70W (MAX), the actual power to enhance heat dissipation 100W (MAX)
Conversion efficiency: 85%
Operating temperature: Industrial grade (-40 ? to +85 ?) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)
Full load temperature rise: 45 ° C
No-load current: typical 35mA
Load Regulation: ± 0.5%
Voltage Regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short-circuit protection: None (Please Install fuses and protection circuits at Input port.)
Input reverse polarity protection: None (Please put diode at the input port.)
Connection mode: solderless, terminaWeight: 70 g
