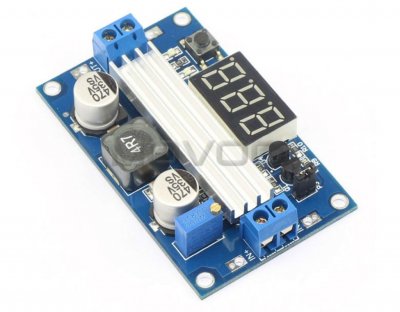

DCDC-omvandlare 3..35V till 3,5...35V 6A

Artikelnr. 335-3535

Feature:

• Module Model:Boost Converter + Voltmeter
• Cutting Size: 67.5mm x 41.5mm
• Input Voltage: DC 3~35V
• Input current: 9A (Max.)
• Output Voltage: 3.5V~35V ( Adjustable,Booster, output voltage>= input voltage)
• Output Current: 6A (Max.)
• Output power: 65W, 100W( input and output voltage >20V)
• Output Ripple: 40mV (TYP)
• Display Color: Red
• Voltage Meter Error: ± 0.1V
• Measure Range:4~40V(for measure accurately, please ensure that the input voltage is more than 4V)
• Conversion efficiency: 96% (Max.)
• Anti-reverse protection:None(please pay attention to the positive and negative)
• A key switch input and output voltage
• green light: measuring the output voltage
• Red light: measuring the input voltage
• Long press the switch for more than 1 second then release, the voltmeter shutdown
• (Please check the picture to see more detail.)

Conversion efficiency measured(Voltmeter off):
